Coiler Machine for Wheel Rim

As a major wheel rim machinery manufacturer, we supply a variety of equipment, including the coiler machine for the wheel rim production line. This rim machine set consists of the feeder, deburrer, stamper and coiler.

Functions of each part
1. The feeder is used to manually feed a single piece of a rim band.
2. The deburrer is equipped to remove burrs at both edges of the rim band, protecting molds and operators from scratches during the next processing steps.
3. The stamper presses the needed marks on the rim band, including specification, model, manufacturer production date and other information.
4. The coiler is a wheel rim forming machine used to automatically coil the cut to length rim bands.

Process Pictures for Reference
  • Setp1, feeding
  • Step2, deburring
  • Step3, stamping

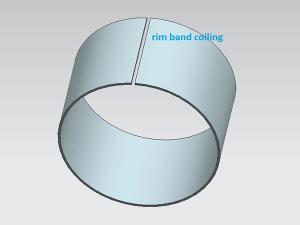

  • Step4, coiling

Main Features of the Coiler Machine
1. Therim equipment has a horizontal structure, chain transmission, and hand wheel for adjustment. This ensures the easy operation and maintenance.
2. The stamping head on the stamper can be quickly changed according to different needs.
3. The discharge end can be designed with an automatic discharging platform that is conducive to the automatic transportation of the work piece.
4. The wheel rim coiler machine features an integrated design, that melds deburring, stamping and coiling into one machine, saving labor and floor space.
5. The main shaft is engineered from the NSK brand high performance bearing, ensuring the long service life.
6. The horizontal coiler machine uses an electrical control system from Schneider, making it safe and reliable.
7. The coiler used in the small wheel rim line is able to flatten the welding joint. After it has been formed into a coil, the work piece can be directly conveyed to the butt welding process.

Main Technical Parameters of Coiler Machine
Applications Small rim line Large rim line Ultra large rim line
Rim diameter range 13 to 18inch 17.5 to 26inch 20 to 54inch
Rim band thickness ≤ 4mm ≤ 8 mm ≤ 8 mm
Rim band width 3 to 10inch 5.5 to 16inch 7 to 28inch
Main machine specifications Feeder Available Available Available
Deburrer JMC-100 JMC-100 JMC-100
Stamper DZJ-120 DZJ-120 DZJ-120
Coiler QYJ-600 QYJ-800 QYJ-1500
Input power Deburrer power 4 Kw 5.5Kw 5.5 Kw
Coiler power 7.5 Kw 11Kw 11Kw
Total input power 11.5 Kw 16.5Kw 16.5Kw
Coiling roller diameter 155mm 165mm 175mm
Coiling roller speed 88r/min 63r/min 63r/min
Power supply AC 380V/3phase/50Hz, Can be customized
